Pattern Viewer guide
Measure along the lines, overlay sizes, save to Excel or CSV.
DXF tools for garment patterns
Drop in a pattern,
get lengths and yardage.
From one DXF: measure along the pattern lines, take trim lengths, overlay sizes to compare, and nest pieces on fabric for yardage per garment.
- Pattern ViewerTrue length along curves · compare sizes and files
- Marker NestingAuto nesting per fabric · marker length · efficiency · yardage
- No install, no serverOpen the address and it runs right in this browser
1Pattern ViewerAlong line Straight · SIZE 100 · cm
2Marker Nesting58″ · 6 shirts · 60 pieces · 6.814 m
- Armhole (along line)
- 24.7 cm
- Chest (straight)
- 114.0 cm
- Efficiency
- 84.8 %
- Yield / garment
- 1.242 yd
Open your DXF
Tools
One DXF, two tools.
Pattern Viewer

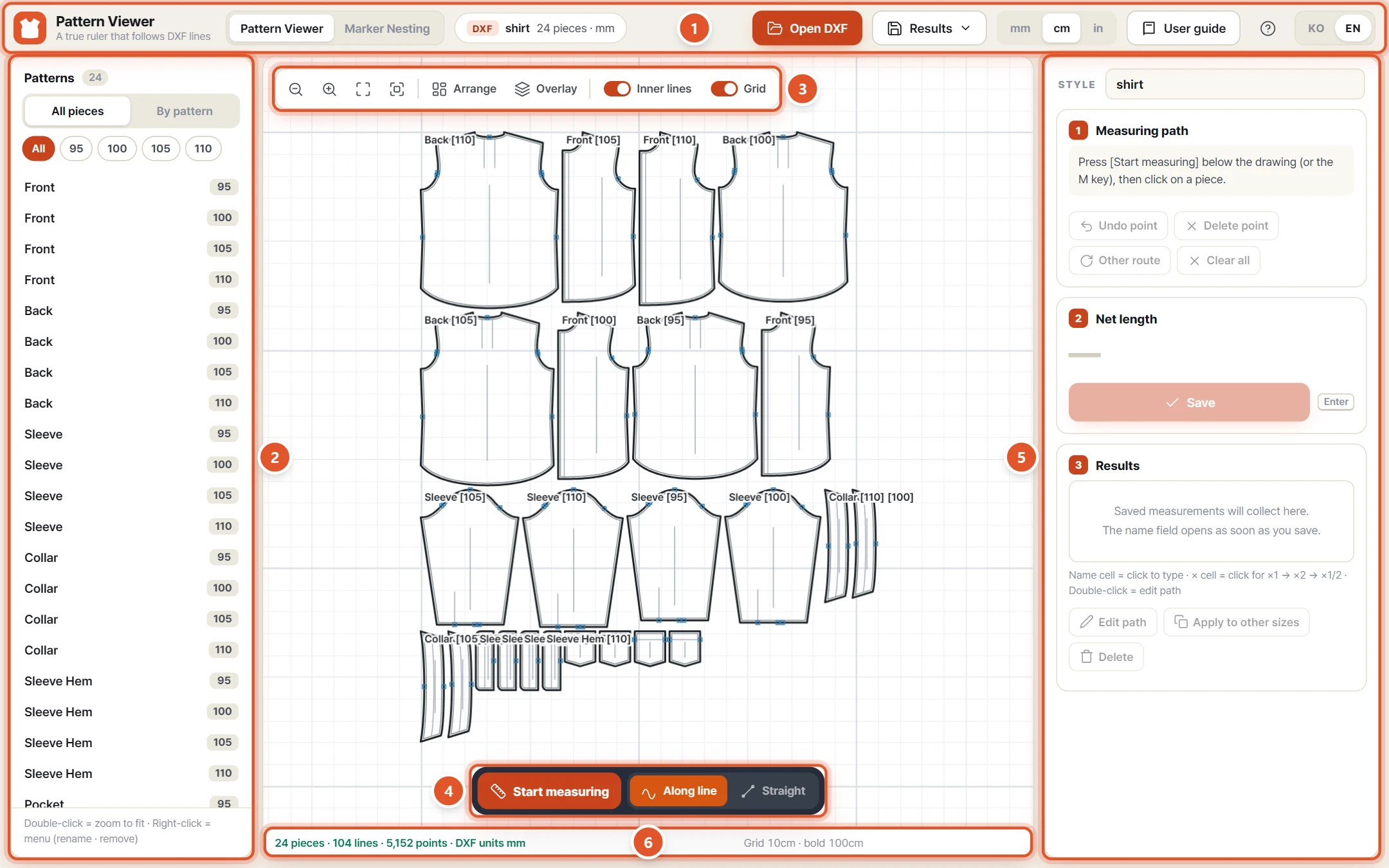

Click a start and an end point and it measures the true length along the drawing's coordinates. Drop several files to compare them.
1Along line · straight
2Multiplier ×2 · ×½
3Size overlay
Open Pattern Viewer →
Marker Nesting

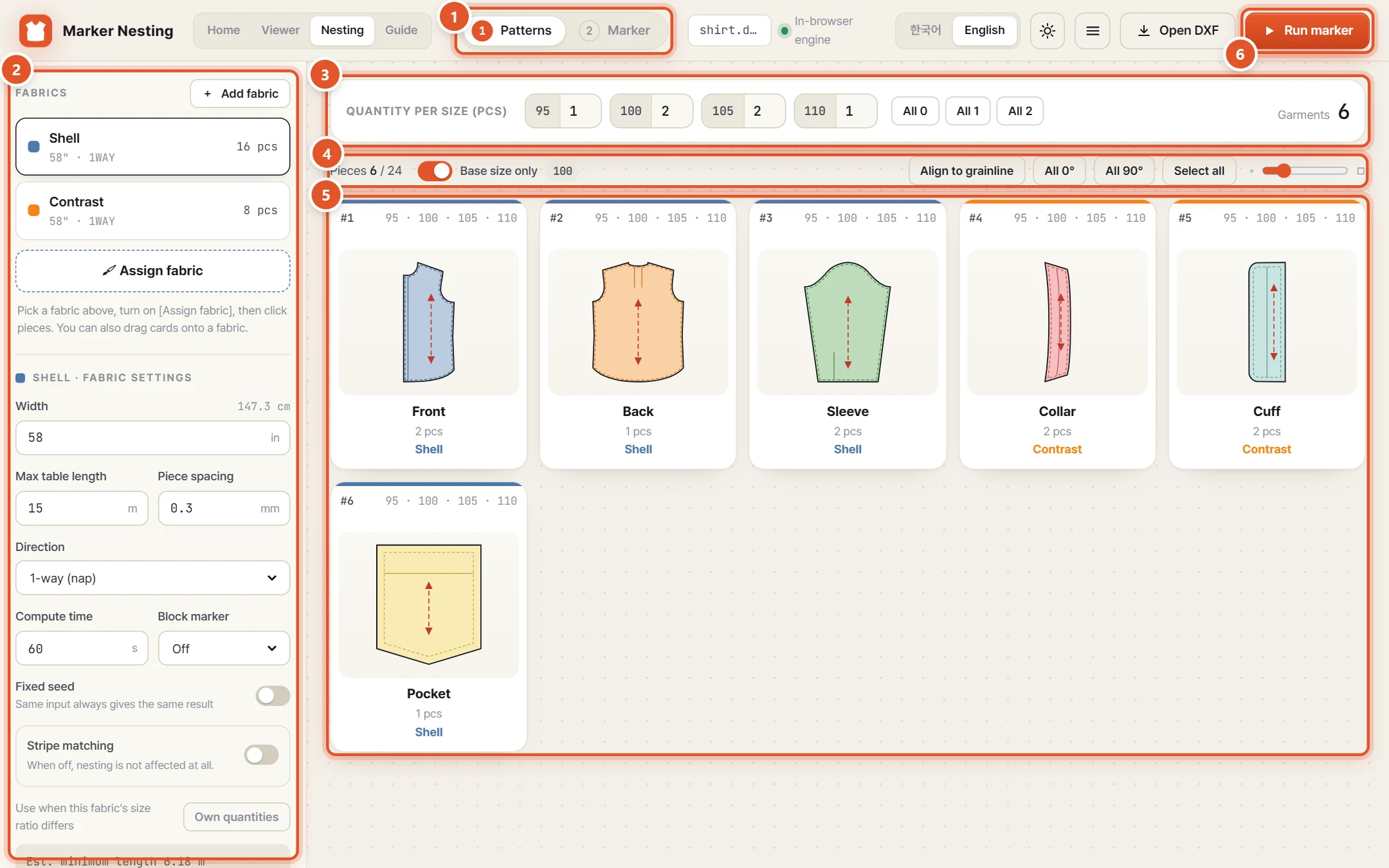

Nests patterns per fabric and gives marker length, efficiency and yardage per garment in one pass.
1Organize patterns
2Marker result
Open Marker Nesting →
